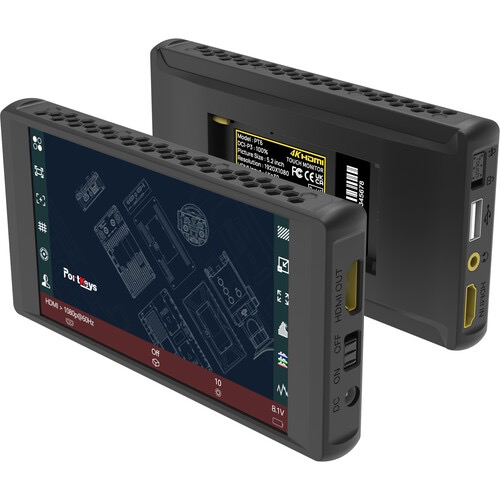

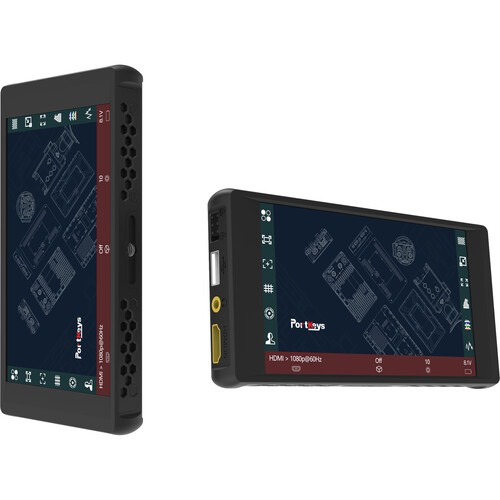

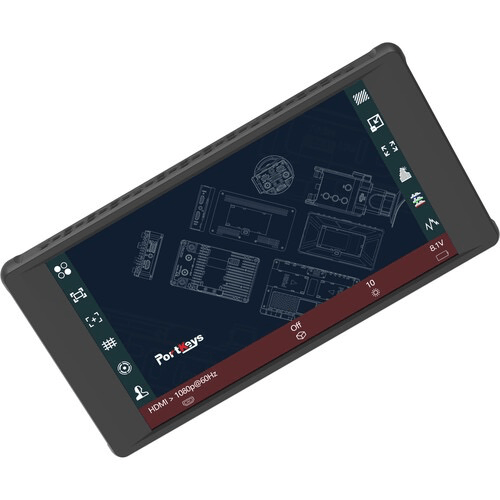

PORTKEYS PT6 5.2” 4K HDMI Touchscreen Monitor

PORTKEYS PT6 5.2” 4K HDMI Touchscreen Monitor - B&C Camera

1 of 7

Authorized Dealer

PORTKEYS PT6 5.2” 4K HDMI Touchscreen Monitor

Name: PORTKEYS PT6 5.2” 4K HDMI Touchscreen Monitor
Brand: Portkeys
SKU: PKS1006
Price: 169.0 USD
Availability: InStock

PortkeysSKU: PKS1006

Price:

$169.00

Availability:

In stock

Add Protection:

3-Year Diamond Protection Warranty - $65.99 Add

In stock

Pickup available at B&C Camera

Usually ready in 1 hour

Share this product

Key Features
In the Box

5.2" 1920 x 1080 Touchscreen Display
4K30 HDMI Input/1080p60 HDMI Output
3D LUT Output/UI Output/DCI-P3 Color
600 cd/m² Bright/1500:1 Contrast Ratio
Vertical Output with Stretch Feature
Anamorphic Output/Brightness/Tint
DC Input/USB-A Output Port
Customized Peaking & Cropping
Sunshade & Tilting Shoe Bracket
L-Series & LP-E6 Battery Support

Description
SpecificationsSpecs
Ask a QuestionQ&A
Reviews

Display

Panel Type	IPS-Type LCD
Display Size	5.2" / 13.2 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	Yes
Maximum Brightness	1500 cd/m2
Contrast Ratio	600:1
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	423 ppi
Color Gamut	100% DCI-P3 100% Rec. 709
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O	1 x HDMI Input 1 x HDMI Output
Embedded Audio	HDMI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Power I/O	Power I/O
Other I/O	1 x USB-A 2.0 Input
App Compatible	No

Format Support

Video Format

HDMI (10-Bit 4:4:4/4:2:2)

DCI 4K: 24

UHD 4K: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576p: 50

576i: 50

480p: 60/59.94

480i: 60/59.94

Gamma Curve

HDR-HLG

Power

DC Input Power	7 to 24 VDC
Battery Type	1 x LP-E6, L-Series
Power Consumption	6 W (Maximum)
Mounting	1 x 1/4"-20 Female

General

Material of Construction	Plastic, Polycarbonate
Dimensions	5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm
Weight	6.0 oz / 170 g
