- 45MP Full-Frame Stacked BSI CMOS Sensor
- DIGIC Accelerator Processing
- Dual Pixel CMOS AF/Eye Control AF
- 8K 60 Raw/4K 60 SRAW/4K 120 10-Bit Video
- Up to 30 fps
- Pre-Continuous Shoot Mode
- 5.76m-Dot EVF with OVF Sim. View Assist
- 3.2" Vari-Angle Touchscreen LCD
- In-Camera Upscaling to 179MP
- CFexpress & SD UHS-II Memory Card Slots
- RF 24-105mm f/4 L IS USM Lens
- Canon EOS R5 Mark II Mirrorless Camera
- Camera Strap
- Canon R-F-5 Camera Cover
- Canon ER-kE Eyecup
- Canon ER-SC3 Shoe Cover
- Canon LP-E6P Lithium-Ion Battery
- Canon LC-E6 Charger for LP-E6 and LP-EL Battery Packs
- Battery Pack Cover
- Canon IFC-100U Interface Cable (39.4")
- Power Cord
MACK 3 Year Diamond Warranty
Benefits:
✅ Impact damage
✅ Manufacturer defects
✅ Sand/Grit damage
✅ Accidental damage & unintentional abuse
✅ Mechanical malfunctions
✅ Normal and abnormal wear & tear
✅ Lemon protection
✅ 2 Free sensor cleanings for the life of the warranty - cameras only (USA only)
✅ 1 Free video head cleaning per year for the life of the warranty - video cameras only (USA only)

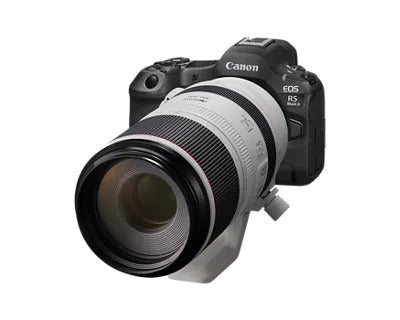

Canon EOS R5 MARK II
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-406297.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-720713.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-142861.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-724702.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-192193.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-723086.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-991914.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-423311.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-425926.jpg?v=1721283375&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-406297.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-720713.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-142861.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-724702.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-192193.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-723086.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-991914.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-423311.jpg?v=1721283374&width=1750)
![Canon EOS R5 MARK II - B&C Camera](http://store.bandccamera.com/cdn/shop/files/canon-eos-r5-mark-ii-425926.jpg?v=1721283375&width=1750)
Canon EOS R5 MARK II
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_39de1402-99be-409e-87f2-91fc93b8864e.jpg?v=1721211593)
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_eb213da9-53fd-492a-a1d8-b9e4b5d2b9e5.jpg?v=1721211698)
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_c234a084-4e10-421e-b811-9861b9462fa2.jpg?v=1721211731)
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_da95c1f0-aef7-42f3-8c12-33ac4c156454.jpg?v=1721211758)
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_351776d9-9453-48fb-9fdb-597f322167fd.jpg?v=1721211789)
![](http://store.bandccamera.com/cdn/shop/files/preview_images/hqdefault_65d5858e-8537-4721-bd58-daff0b7408db.jpg?v=1721211820)
![]() |
New Sensor
The new full-frame, back-illuminated stacked CMOS sensor boasts 45 megapixels and delivers exceptionally fast signal readout speeds. This optimization minimizes rolling shutter effects and allows for up to 30 fps using the electronic shutter. |
Advancements in Autofocus
Once you calibrate the viewfinder to your eye, simply look at your desired focal point. When you press the AF activation button, the AF Area will automatically move to that spot. |
![]() |
![]() |
Ready for ActionCapture the action shot you want, even in fast-moving situations, by locking focus on key individuals. Continuously track your subject, even if they are momentarily obscured during shooting. |
In-camera Upscaling and Neural Network Noise ReductionDeep learning technology enables higher image resolution without compromising quality. |
![]() |
![]() |
8K RAW VideoYou can record RAW video at 8K and 4K (S-RAW) resolution. |
SPEEDY SENSORThis entirely new full-frame sensor design delivers impressive electronic shutter performance, enabling 30 fps for RAW or full-resolution JPEG still images. Experience significantly reduced rolling shutter distortion thanks to dramatically increased sensor readout speeds. |
![]() |
![]() |
POWERFUL PROCESSINGIt manages the processing that enables many of the new features of this camera, allowing the DIGIC X chip to concentrate solely on image processing, thereby enhancing overall speed. |
NEW AF MODE: ACTION PRIORITYAction priority can recognize and track specific people and takes into account ball tracking, movement tracking, People Priority, eye-control AF, and more to help. Currently available for soccer, volleyball, and basketball. |
![]() |
![]() |
GET CINEMATICRAW video can now be recorded at 8K resolution, with an S-RAW setting available for 4K RAW video recording. RAW video is captured in 12-bit, offering a greater range of tonalities. For users not requiring RAW video, MP4-type video can be recorded in various file types and resolutions: Full HD at up to 240 frames per second, 4K at up to 120 frames per second with sound, and 8K at up to 60 frames per second. |
IMPROVED DATA STORAGEWith its 45 Megapixel sensor, 8K video up to 60 frames per second can be recorded internally, to the camera’s CFexpress card. |
![]() |
![]() |
EASY TO NAVIGATEMenus now utilize Cinema EOS terminology, simplifying the integration of the R5 Mark II with Cinema EOS cameras such as the EOS C400 for advanced video users. |
ENHANCED DETAILAll "Fine" options record oversampled video, enhancing sharpness and detail. Canon Log 2 and C-Log 3 are available. Additionally, the R5 Mark II includes new features such as a full-size HDMI port, waveform monitors, and up to 24-bit, 4-channel audio recording. |
![]() |
![]() |
CLEAR IMAGERYThe roll operation range is now approximately double that of the EOS R3. When paired with a compatible lens, the CMOS sensor effectively reduces blurring both at the periphery and the center of the image. |
Type
Type | Digital interchangeable lens, mirrorless camera |
Image Processor | DIGIC X (with DIGIC Accelerator co-processor) |
Recording Media | Card 1: CFexpress memory card • Type B: Card slot • CFexpress 2.0 and VPG400 supported • Up to 2 TB is supported (a card exceeding 2 TB is handled as a card of 2 TB). Card 2: SDXC/SDHC/SD memory card • Compatible with UHS-II • Eye-Fi cards and MultiMediaCards (MMC) not supported |
Compatible Lenses | Canon RF lens group (including RF-S lenses) When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) |
Lens Mount | Canon RF mount |
Image Sensor
Type | Canon designed full-frame back-illuminated stacked CMOS sensor (compatible with Dual Pixel CMOS AF and Cross-type AF) |
Effective Pixels | Approx. 45 megapixels |
Screen Size | Approx. 36.0 x 24.0 mm |
Pixel Unit | Approx. 4.40 µm square |
Total Pixels | Approx. 50.3 megapixels |
Aspect Ratio | 3:2 (Horizontal: Vertical) |
Color Filter System | RGB primary color filters |
Low Pass Filter | Installed in front of the image sensor, non-detachable |
Dust Deletion Feature | (1) Self Cleaning Sensor Unit • Removes dust adhering to the low-pass filter. • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi- cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen). • After manually activated cleaning, the camera will automatically restart (Power OFF to ON). • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected. (2) Dust Delete Data acquisition and appending • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and append- ed to subsequent images. • The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots. • Not available with RF-S/EF-S lenses, in cropped shooting, during focus bracket shooting, in FAW burst mode, or multiple-exposure shooting. (3) Manual cleaning (by hand) |
Recording System
Recording Format | Compliant to Design rule for Camera File system 2.0 and Exif 2.31*. *Supports time difference information in Exif 2.31 |
Image Format | RAW: RAW / C-RAW JPEG / HEIF: L / M / S1 / S2 Movies: • RAW • XF-HEVC S YCC422 10bit • XF-HEVC S YCC420 10bit • XF-AVC S YCC422 10bit • XF-AVC S YCC420 8bit |
Folder | When a card is inserted, the following folders are created automatically. DCIM, CRM, XFVC, and MISC folders |
Folder Actions | Select folder, Create folder, Change folder name |
Folder Name
Still Photos | DCF standards compliant. The following folder is created automatically in the DCIM folder. • Default: EOSR5 *This can be changed to any character string (5 characters) |
Movies | XF-HEVC S / XF-AVC S format REEL_**** in XFVC folder A normal movie file (MP4) is saved. REEL_**** in CRM folder A RAW movie file (CRM) is saved. In each REEL_**** folder: * Up to 999 files can be saved in one folder. When [Add News Metadata: On], an XML file is saved to the same location as the movie file in the card after movie recording |
News Metadata | XF-HEVC S / XF-AVC S format News Metadata is saved in the XMLTAG folder in the currently selected card. * Up to 100 XML files can be saved in one XMLTAG folder |
Movies | (Example)A_0001C001Ayymmdd_hhmmssXX_CANON_001_Proxy Item Details (1) Camera index 2 characters from A to Z. “_” can also be selected for the second character. A different character is assigned for each camera. (2) Reel number 4-digit number from 0001 to 9999. A different number is automatically assigned to each card. Any initial value can be specified. When the card is replaced with a new card , the* number is incremented by one when recording for the first time. * Purchased card or card immediately after initialization (3) Clip number 3-digit number from 001 to 999 with “C” added before it so that it becomes C001 to C999. If 999 is exceeded, “C” changes to “D.” A clip number is automatically assigned to each clip. Any initial value can be set. (4) Codec type A is assigned automatically if the codec type of the main movie is AVC, H if it is HEVC, and X if it is RAW. (5) Shooting start date The starting date (year, month, and day) of the clip is assigned automatically. (6) Shooting start time The starting time (hours, minutes, and seconds) of the clip is assigned automatically. (7) Random ID An ID is assigned randomly for each clip, and is 2 characters from A to Z and 0 to 9. (8) User defined User settable 5 characters from A to Z and 0 to 9. The default is CANON. (9) Stream number 3-digit number from 001 to 999. This is assigned to files that have been split. (10) Proxy “_Proxy” is appended automatically to a proxy movie file. * Up to 999 movie files can be recorded to one card. * The file name of the proxy movie is the same as that of the main movie except “_Proxy” of (10). * The file names when [Rec. to multiple] is set are the same for both cards 1 and 2. * Clip number can be assigned up to D999. (Since no later number can be assigned, movie recording is not possible.) |
News Metadata | NewsML-G2 standard compliant When [Add News Metadata: On] is set, news metadata (XML file) of the movie associated with the set news metadata is generated. * The name of the generated XML file is the same as the name of the movie file (only the extension differs). * The news metadata (XML file) is saved to the same location as the movie file in the card after movie recording. *When news metadata has been set from Content Transfer Professional, the news metadata set from the card inserted in the camera is disabled (that of the app has priority) |
Image type / recording format / extension | Image type / recording format Extension Still Photo JPEG .JPG HEIF .HIF RAW .CR3 C-RAW Movies RAW .CRM XF-HEVC S YCC422 10 bit XF-HEVC S YCC420 10 bit XF-AVC S YCC422 10 bit XF-AVC S YCC420 8 bit .MP4 News Metadata*1 .XML *1: When MP4 movie is recorded with [Add CP file: Enable], “.CPF” file will be created |
File Numbering
File Numbering Methods | • Continuous numbering The numbering of captured images continues even after you replace the card. • Auto reset When you replace the card, the numbering will be reset to start from 0001. If the new card already con- tains images, the numbering will continue from the last recorded image in the card. |
Manual Rese | Resets the file number to 0001, and creates a new folder automatically. * When manually resetting the file number, folders can also be renamed. (1) (2) (3) (4) (5) |
Clip Number | • Continuous numbering The numbering of captured clips continues from the last recorded clip even after you replace the card. • Auto reset When you replace the card, the numbering will be reset to start from 001. If the new card already contains clips, the numbering will continue from the last recorded clip in the card. |
Recording Media
Recording Media | Card 1: CFexpress memory card • Type B: Card slot • CFexpress 2.0 and VPG400 supported • Up to 2 TB is supported (a card exceeding 2 TB is handled as a card of 2 TB). Card 2: SDXC/SDHC/SD memory card • Compatible with UHS-II • Eye-Fi cards and MultiMediaCards (MMC) not supported |
Card Access Indicator | Access lamp lights up in red or blinks in red |
Read Error Warning | • The error warning is displayed in the viewfinder and on the screen • Shutter release lock |
Card Formatting | • Normal formatting • Low-level formatting |
Maximum File Size
CFexpress | Unlimited |
SDXC/SDHC/SD | Card Format Maximum File Size SDXC exFAT Unlimited SDHC FAT32 4 GB (If exceeded, a new file is created for movie recording.) SD FAT16/FAT12 2 GB (If exceeded, a new file is created for movie recording.) |
No Card Warning | Supported |
Shutter Release without a card | Supported |
Record Function + Card/Folder Selection | Item Setting separate Disable / Enable Rec options Standard / Auto switch card / Record separately / Record to multiple Rec options Standard / Auto switch card / Main Proxy*1/ Record to multiple Record/play Record/play Folder Select folder, Create folder, Change folder name *1: When a new file is created during movie recording (when splitting file), a new file is created simul- taneously for both the main movie and the proxy movie. *2: Recording to multiple cards is not available when the camera is set to a movie recording quality that cannot be recorded to both cards. / * Card 1 can be set as the priority card. * Card 1 can be set as the priority card. |
Still Photo Recording
Image Size | RAW: RAW / C-RAW JPEG / HEIF: L / M/ S1 /S2 |
HEIF | HEIF recording is available when [HDR shooting (PQ): HDR PQ] is set. * Conforms to MIAF (multi-image application format) standards. |
C-RAW | RAW images conforming to the CR3 format that have smaller file sizes. * RAW offers better image quality than C-RAW. * Conversion from RAW to C-RAW or C-RAW to RAW is not possible. * Simultaneous recording of RAW and C-RAW is not supported |
Dual Pixel RAW shooting | Not Supported |
JPEG/HEIF image quality | The degree of compression is user-configurable in a range of 1–10 for each image size (L, M, S1, and S2). * The number of shots available at the specified JPEG or HEIF image quality level is displayed on the camera |
Still photo cropping / aspect ratio | Full-frame / 1.6x (crop) / 1:1 (aspect ratio) / 4:3 (aspect ratio) / 16:9 (aspect ratio) * Switching between [Shooting area: Masked/Outlined] is possible |
Recording Pixel Count
Recording Pixel Count | Image Size Resolution (Pixels) Still photo cropping / aspect ratio 3:2 1.6x (crop)*1 1:1 4:3 16:9 JPEG /HEIF L Approx. 44.8MP (8192x5464) Approx. 17.3MP (5088x3392) Approx. 29.8MP (5456x5456) Approx. 39.8MP (7280x5464) Approx. 37.7MP (8192x4608) M 24.0MP (6000x4000) 16.0MP (4000x4000) Approx. 21.3MP (5328x4000) Approx. 20.2MP (6000x3368) S1 Approx. 11.6MP (4176x2784) Approx. 7.8MP (2784x2784) Approx. 10.3MP (3172x2784) Approx. 9.8MP (4176x2344) S2 Approx. 3.8MP (2400x1600) Approx. 3.8MP (2400x1600) Approx. 2.6MP (1600x1600) Approx. 3.4MP (2112x1600) Approx. 3.2MP (2400x1344) RAW RAW/ C-RAW Approx. 44.8MP (8192x5464) Approx. 17.3MP (5088x3392) Approx. 44.8MP (8192x5464) * 1: Angle of view of approx. 1.6 times the indicated focal length. * Values for recorded pixels are rounded off to the nearest 100,000th. * Colored cells indicate an inexact proportion. * RAW/C-RAW images are generated in [3:2], and the set aspect ratio information is appended to the images. * JPEG/HEIF images are generated in the set aspect ratio. * These aspect ratios (M / S1 / S2) and pixel counts also apply to resizing |
Image Type | Image type Bit Depth JPEG 8 bits HEIF 10 bits RAW 14 bits (14-bit A/D conversion), Canon original |
Gamma / Color Space | HDR Shooting (PQ) Color Space Internal Recording HDMI output Disable (SDR) sRGB / Adobe RGB BT.709 HDR PQ BT.2020 BT.709/BT.2020*1 *1: When connected to an HDR compatible monitor |
Video signal range | HDR Shooting (PQ) Internal Recording HDMI output Range Recording range Range HDMI output range Disable (SDR) 0-255 Full Range 64-940 Narrow Range HDR PQ 0-1023 Full Range 64-940 Narrow Range |
RAW+JPEG/HEIF simultaneous recording | Simultaneous recording of any combination of RAW/C-RAW images and JPEG/HEIF images is sup- ported |
One-touch switching of image quality | Available * Can be assigned to a preferred button in [Customize buttons for shooting]. |
Digital tele-converter | Not Supported |
Still Photo file size / Number of shots available / Maximum burst for continuous shooting
Mechanical shutter/ Electronic first-curtain | Image Quality File Size [Approx. MB] Possible Shots [Approx.]*¹ Maximum Burst [Approx.]* CFexpress Card*¹ SD Card*² JPEG*³ L 13.0 23710 760 760 M 7.8 39370 670 660 S1 4.6 67580 670 660 S2 1.8 171670 670 660 HEIF* L 12.5 24290 690 640 M 8.1 37350 740 740 S1 4.9 60570 780 780 S2 1.8 148190 790 780 RAW RAW 47.6 6540 230 95 C-RAW 20.6 15210 580 580 RAW+JPEG*³ RAW + L 47.6 + 13.0 5120 150 87 C-RAW + L 20.6 + 13.0 9260 310 190 RAW+HEIF* RAW + L 47.6 + 12.5 4860 89 84 C-RAW + L 20.6 + 12.5 8420 180 170 *1: Number of shots available and maximum burst for CFexpress cards apply to 325 GB CFexpress cards conforming to Canon testing standards. *2: Maximum burst for SD cards applies to 128 GB UHS-II SD cards conforming to Canon testing standards. *3: When [HDR shooting (PQ): Disable] is set. *4: When [HDR shooting (PQ): HDR PQ] is set. * Maximum burst as measured under conditions conforming to Canon testing standards (One-shot AF, High-speed continu- ous shooting+, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F) * File size, number of shots available, and maximum burst vary depending on shooting conditions (including remaining bat- tery level, battery temperature, cropping/aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Functions) |
Electronic shutter | Image Quality File Size [Approx. MB] Possible Shots [Approx.]*¹ Maximum Burst [Approx.]* CFexpress Card*¹ SD Card*² JPEG*³ L See chart on previous page 200 200 M 200 200 S1 200 200 S2 200 200 HEIF* L 200 200 M 200 200 S1 200 200 S2 200 200 RAW RAW 93 86 C-RAW 170 170 RAW+JPEG*³ RAW + L 85 82 C-RAW + L 160 150 RAW+HEIF* RAW + L 79 79 C-RAW + L 150 150 *1: Number of shots available and maximum burst for CFexpress cards apply to 325 GB CFexpress cards conforming to Canon testing standards. *2: Maximum burst for SD cards applies to 128 GB UHS-II SD cards conforming to Canon testing standards. *3: When [HDR shooting (PQ): Disable] is set. *4: When [HDR shooting (PQ): HDR PQ] is set. * Maximum burst as measured under conditions conforming to Canon testing standards (One-shot AF, High-speed continu- ous shooting+, JPEG/HEIF image quality: 8, ISO 100, Picture Style: Standard, and room temperature: 23°C / 73°F) * File size, number of shots available, and maximum burst vary depending on shooting conditions (including remaining bat- tery level, battery temperature, cropping/aspect ratio, JPEG/HEIF image quality, subject, memory card brand, ISO speed, Picture Style, and Custom Functions) |
Proxy Movie
The recording format and movie recording size of the proxy movie are set automatically as shown in the table below de- pending on the recording format and movie recording size of the main movie. | Main recording format Main movie recording size Proxy recording format Proxy movie recording size Resolution Compression format Resolution Compression format RAW RAW SRAW Standard RAW Light RAW XF-AVC S YCC420 8bit 2K-D Standard LGOP Light LGOP XF-HEVC S YCC422 10bit XF-HEVC S YCC420 10bit 4K-D 2K-D Standard Intra Light Intra Standard LGOP XF-HEVC S YCC420 10bit 2K-D 4K-U Full HD Full HD XF-AVC S YCC422 10bit XF-AVC S YCC420 8bit 4K-D 2K-D High Quality Intra Standard Intra Light Intra Standard LGOP XF-AVC S YCC420 8bit 2K-D 4K-U Full HD Full HD * The angle of view and frame rate of the proxy movie are the same as for the main movie. * The image quality (Normal/Fine) of the proxy movie is fixed to Normal. * When Main Proxy is set, a main movie of 100.00 fps or more is not possible. * Even if recording of the proxy movie stops due to an error, recording of the main movie continues. * If recording of the main movie stops, recording of the proxy movie also stops. * When Main Proxy is set, the recording time of the main movie is indicated. When [Rec. to multiple] is set, the recording time for the card with the least space is indicated. * If there is no card 1, the time available for recording of the proxy movie is indicated, and proxy movie recording is possible. |
Movie recording size and resolution | Movie Recording Size Resolution (Aspect ratio) RAW 8192 × 4320 (Approx. 17:9) SRAW 4096 × 2160 (Approx. 17:9) 8K-DCI 8192 × 4320 (Approx. 17:9) 8K-UHD 7680 × 4320 (16:9) 4K-DCI 4096 × 2160 (Approx. 17:9) 4K-UHD 3840 × 2160 (16:9) 2K-UHD 2048 × 1080 (Approx. 17:9) Full HD 1920 × 1080 (16:9 |
System frequency (previously video system) | 59.94 Hz: NTSC / 50.00 Hz: PAL |
Image quality | High-quality 4K movies from 8K oversampling • 4K-D Fine • 4K-U Fine High-quality 2K movies from 4K oversampling • 2K-D Fine • Full HD Fine |
Movie Cropping
The recording format and movie recording size of the proxy movie are set automatically as shown in the table below de- pending on the recording format and movie recording size of the main movie | Recording format Compression method / RAW format Resolution Image quality Frame Rate 239.76 200.00 119.88 100.00 59.94 50.00 29.97 25.00 24.00 23.98 XF-HEVC S YCC422 10 bit XF-HEVC S YCC420 10 bit XF-HEVC S YCC422 8 bit Standard LGOP 4K-D Fine Normal Yes Yes Yes Yes Yes Yes 4K-U Fine Normal Yes Yes Yes Yes Yes 2K-D Fine Normal Yes*1 Yes*1 Yes Yes Yes Yes Yes Yes Full HD Fine Normal Yes*1 Yes*1 Yes Yes Yes Yes Yes XF-HEVC S YCC422 10 bit High Quality Intra Standard Intra Light Intra Standard LGOP 4K-D Fine Normal Yes Yes Yes Yes Yes Yes 4K-U Fine Normal Yes Yes Yes Yes Yes Standard Intra Standard LGOP 2K-D Fine Normal Yes*1 Yes*1 Yes Yes Yes Yes Yes Yes Full HD Fine Normal Yes*1 Yes*1 Yes Yes Yes Yes Yes *1: With [High Frame Rate: Disable] setting, movie is recorded with audio and the movie is played back at actual speed. With [High Frame Rate: Enable] setting, no audio is recorded and the movie is played in slow motion at 29.97 fps (NTSC) /25.00 fps (PAL) when played back. Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible) |
Movie recording angle of view | Resolution Recording angle of view (Approx. %) Horizontal Vertical RAW 100 79.1 8K DCI 100 79.1 8K-UHD 93.8 79.1 SRAW 100 79.1 4K-DCI 100 79.1 4K-DCI cropped 62.1 49.0 4K-UHD 93.8 79.1 4K-UHD cropped 58.1 49.0 2K-DCI 100 79.1 2K-DCI cropped 62.1 49.0 Full HD 93.8 79.1 Full HD cropped 58.1 49.0 * 100% angle of view for still photos (JPEG/HEIF) |
High Frame Rate (movie) | Disable / Enable * A movie recorded with [High Frame Rate: Enable] is played back at 29.97 fps (NTSC) / 25.00 fps (PAL) (played back in slow motion). * No audio is recorded for the movie recorded with [High Frame Rate: Enable]. * Automatically stops if the maximum recording time per movie (see “6.43.1 Maximum recording time per recording”) is exceeded. * HDMI output during recording is at 59.94 fps (NTSC) / 50.00 fps (PAL). * The time code counts up 8 sec. (at 239.76 / 200.00 fps) or 4 sec. (at 119.88 / 100.00 fps) per second of real time. * Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible). * When RF-S or EF-S lens is used or when movie cropping enabled, only movie recording size of 2K-D /Full HD (119.88 / 100.00 fps) is available |
HDR movie mode | An HDR movie is created with a single exposure. Unnatural afterimages do not occur when, for ex- ample, shooting a moving subject. The shooting of movies with reduced clipped highlights is possible even in high contrast scenes. HDR Movie Recording: Enable / Disable Shadow compensation: Off / Standard / Brighter Satulation: -4 / -3 / -2 / -1 / 0 / 1 / 2 / 3 / 4 Limitation of maximum brightness: Disable / 1000 nits * Can be set in conjunction with [HDR PQ shooting: PQ]. * Movie digital IS and high-frequency anti-flicker shooting are possible |
